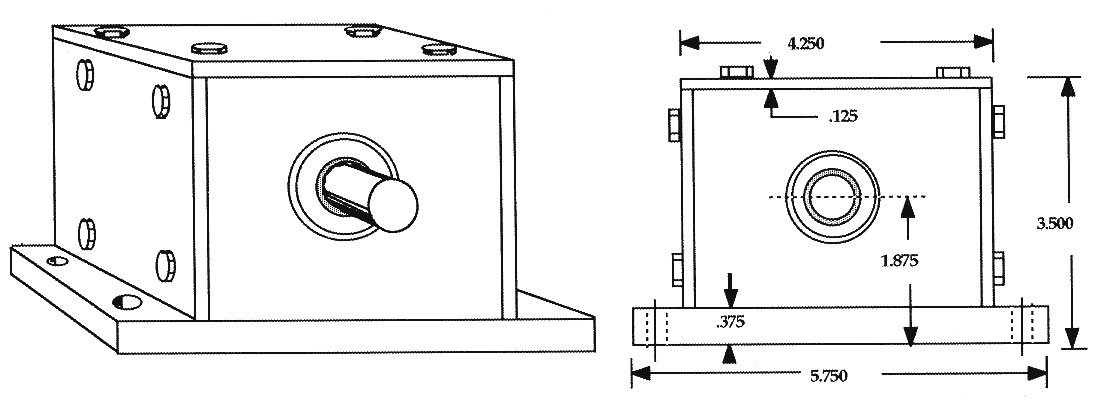

Rugged Aluminum Housing

½" diameter stainless steel shaft

½" threaded hole in rear plate for BX connector or conduit adapter

Pre-wired

Cammed switches and geared output ratios available

Double-sheilded ball bearings

Standard base 5¾ "x4

Lip seal for dust-proof applications

Silicone seal

Ratio

10 turn

Ganged (larger plate/housing available)

MECHANICAL SPECIFICATIONS

Mountings Available

Bushing
Servo
Screw

Mechanical Travel

360° (Cont.)

Taps Available, MAX

40

Starting Torque, Ball

.2 oz/in.

Sleeve

.5 oz/in.

Running Torque, Ball

.2 oz/in.

Sleeve

.3 oz/in.

Ambient Temperature Range, C°

-55 to 105

Life Expectancy, (Rotations) STD.

1,000,000

Life Expectancy, (Rotations) MAX.

20,000,000

Dimensions, STD. (Options Available)

Housing Diameter, O.D.

2.00"

Shaft Diameter

.250"

Shaft Length

Optional

Number if Cups, per Assembled Gang, MAX

12

ELECTRICAL SPECIFICATIONS

Resistance, Range, STD. Ohms

30-100K

Resistance Range, MAX. Ohms

1 Megohm

Resistance Tolerances, STD.

5%

Resistance Tolerance, MIN. Practical

1%

Linearity (independent)

.5%

Linearity, MIN. Practical

.2%

Power Rating, Watts. STD.

4W

Power Rating, Watts MAX.

8W

Dielectric Strength

1000V

Electrical Travel, STD.

320° ± 3°

Electrical Travel, MAX.

357° ± 2°

Noise, MAX. Ohms

80

Temperature Coefficient (ppm/°C)

20

Insulation Resistance, Megohm

1000
