1.062" OD x .655" Deep STD. |
 |
|
Threaded bushing or servo mount |
Center tap optional |
Sleeve or ball bearings |
|
|

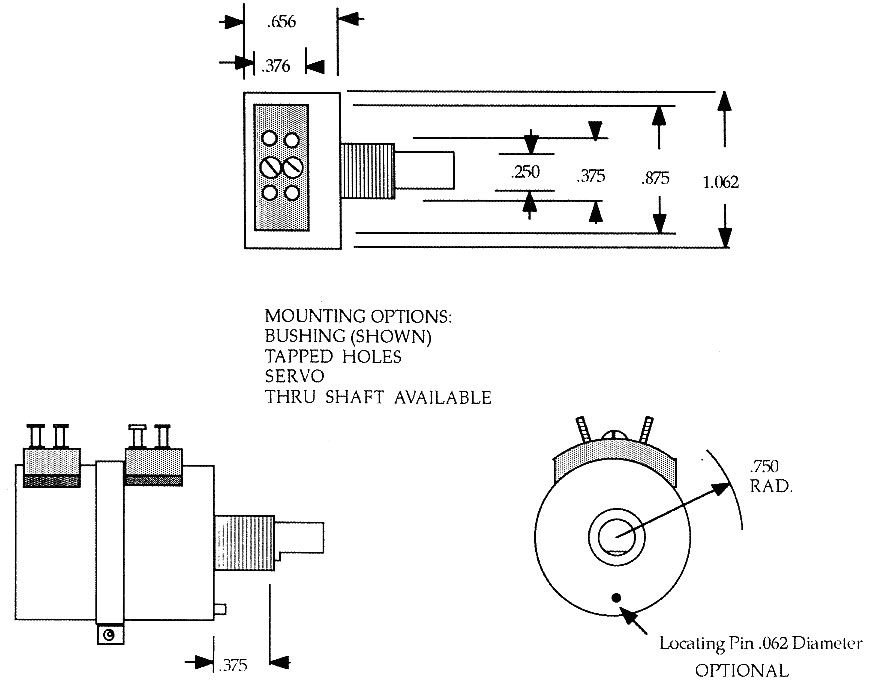

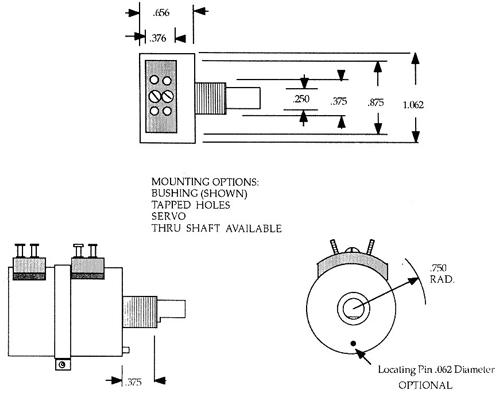

Mountings Available |
Bushing
Servo
Screw |
Mechanical Travel |
360° (Cont.) |
Taps Available, MAX |
1 |
Starting Torque, Ball |
.2 oz/in. |
Sleeve |
.5 oz/in. |
Running Torque, Ball |
.2 oz/in. |
Sleeve |
.3 oz/in. |
Ambient Temperature Range, C° |
-55 to 105 |
Life Expectancy, (Rotations) STD. |
50,000 |
Life Expectancy, (Rotations) MAX. |
1,000,000 |
Dimensions, STD. (Options Available) |
|
Housing Diameter, O.D. |
1.062" |
Shaft Diameter |
.250" |
Shaft Length |
Optional |
Number if Cups, per Assembled Gang, MAX |
6 |
|
|
Resistance, Range, STD. Ohms |
15-50K |
Resistance Range, MAX. Ohms |
150K |
Resistance Tolerances, STD. |
5% |
Resistance Tolerance, MIN. Practical |
1% |
Linearity (independent) |
.5% |
Linearity, MIN. Practical |
.3% |
Power Rating, Watts. STD. |
2W |
Power Rating, Watts MAX. |
3W |
Dielectric Strength |
750V |
Electrical Travel, STD. |
320° ± 3° |
Electrical Travel, MAX. |
354° ± 2° |
Noise, MAX. Ohms |
80 |
Temperature Coefficient (ppm/°C) |
20 |
Insulation Resistance, Megohm |
1000 |
|
